產品說明
額定電壓：300V，額定溫度：105℃

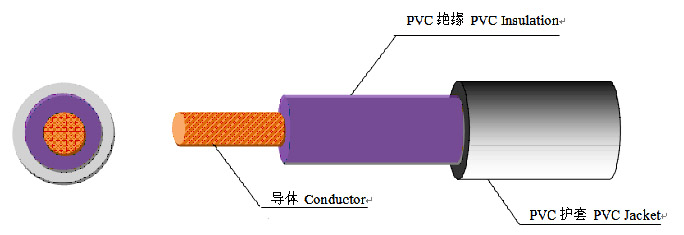

導體使用單根或絞線30-16AWG裸銅或鍍錫絲
交聯PVC絕緣 護層厚度0.127至1.016mm
可通過UL VW-1及CSA FT1垂直耐燃試驗
應用適用于電子、電器設備內部連線
|
導體類型 Conductor Type |
導體 |
絕緣 Insulation |
最大導體電 阻 Max Resistance at 20℃ |
標 準 長 度Standard Length
|
|||||
|
線規Spec |
線數/線徑 |
直徑 Dia. |
絕緣厚度 Primary Nom. Thick. |
標稱外徑 Nom.Dia. |
護層厚度Secondary Nom.Thick |
標稱 厚度Nom. Thick
|
|||
|
AWG |
No./mm |
mm |
mm |
mm |
mm |
mm |
Ω/km |
Ft(M) |
|
|
絞合 導體 Stranded Conductor |
30 |
7/0.10 |
0.30 |
0.48 |
1.26 |
0.48 |
2.22 |
354.24 |
2000
|
|
28 |
7/0.127 |
0.38 |
0.48 |
1.34 |
0.48 |
2.30 |
223.75 |
||
|
26 |
7/0.16 |
0.48 |
0.48 |
1.44 |
0.48 |
2.40 |
139.73 |
||
|
24 |
11/0.16 |
0.61 |
0.48 |
1.57 |
0.48 |
2.53 |
93.3 |
||
|
22 |
17/0.16 |
0.76 |
0.48 |
1.68 |
0.48 |
2.60 |
55.0 |
||
|
20 |
26/0.16 |
0.94 |
0.48 |
1.90 |
0.48 |
2.80 |
34.6 |
||
|
18 |
41/0.16 |
1.18 |
0.48 |
1.96 |
0.48 |
2.92 |
21.8 |
||
|
16 |
26/0.254 |
1.49 |
0.48 |
2.45 |
0.48 |
3.41 |
13.7 |
1000 |
|
|
單根 Single Conductor
|
28 |
1/0.32 |
0.32 |
0.48 |
1.28 |
0.48 |
2.24 |
227.39 |
2000 |
|
26 |
1/0.404 |
0.404 |
0.48 |
1.37 |
0.48 |
2.33 |
142.79 |
||
|
24 |
1/0.511 |
0.511 |
0.48 |
1.47 |
0.48 |
2.43 |
89.39 |
||
|
22 |
1/0.643 |
0.643 |
0.48 |
1.61 |
0.48 |
2.57 |
54.3 |
||
|
20 |
1/0.813 |
0.813 |
0.48 |
1.78 |
0.48 |
2.74 |
33.9 |
||
|
18 |
1/1.024 |
1.024 |
0.48 |
1.99 |
0.48 |
2.95 |
21.4 |
||
|
16 |
1/1.29 |
1.29 |
0.48 |
2.25 |
0.48 |
3.21 |
13.5 |
1000 |
|
