Rated temperature：80℃
Rated voltage：30V
Soft-annealed :TC orbare

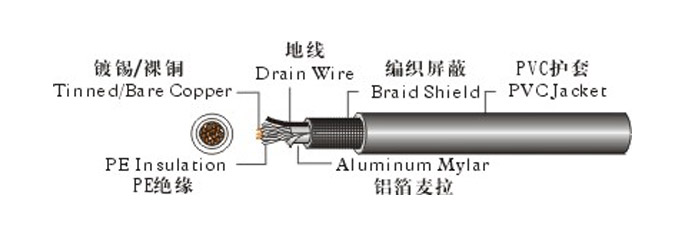

stranded copper conductor
TC or bare stranded copper shield
Drain wire is between Aluminum Mylar and Braid shield
PVC jacket
AL-Mylar
PassUL
VW-1 or CSA FT1flame test.
Reference standard:UL
SUBJECT 758、UL1581 & CSA C22.2
No.210.2
|
導體Conductor |
絕緣Insulation |
地線Drain wire |
外部屏蔽shield |
護套Jacket |
Max.
resistance of Insulation |
||||
|
AWG |
No. |
NO./mm |
Nom.T |
Dia. |
Spiral/ |
Nom. |
Dia. |
||
|
30 |
12 |
7/01.0 |
0.23 |
0.84 |
7/0.16 |
24×5/0.12 |
0.76 |
6.50 |
354 |
|
21 |
7/0.10 |
0.12 |
0.62 |
- |
24×5/0.10 |
0.76 |
6.0 |
||
|
28 |
19p |
7/0.127 |
0.24 |
0.85 |
7/0.16 |
24×9/0.12 |
0.76 |
10.2 |
223 |
|
25p |
7/0.127 |
0.12 |
0.61 |
7/0.16 |
24×8/0.12 |
0.76 |
8.45 |
||
